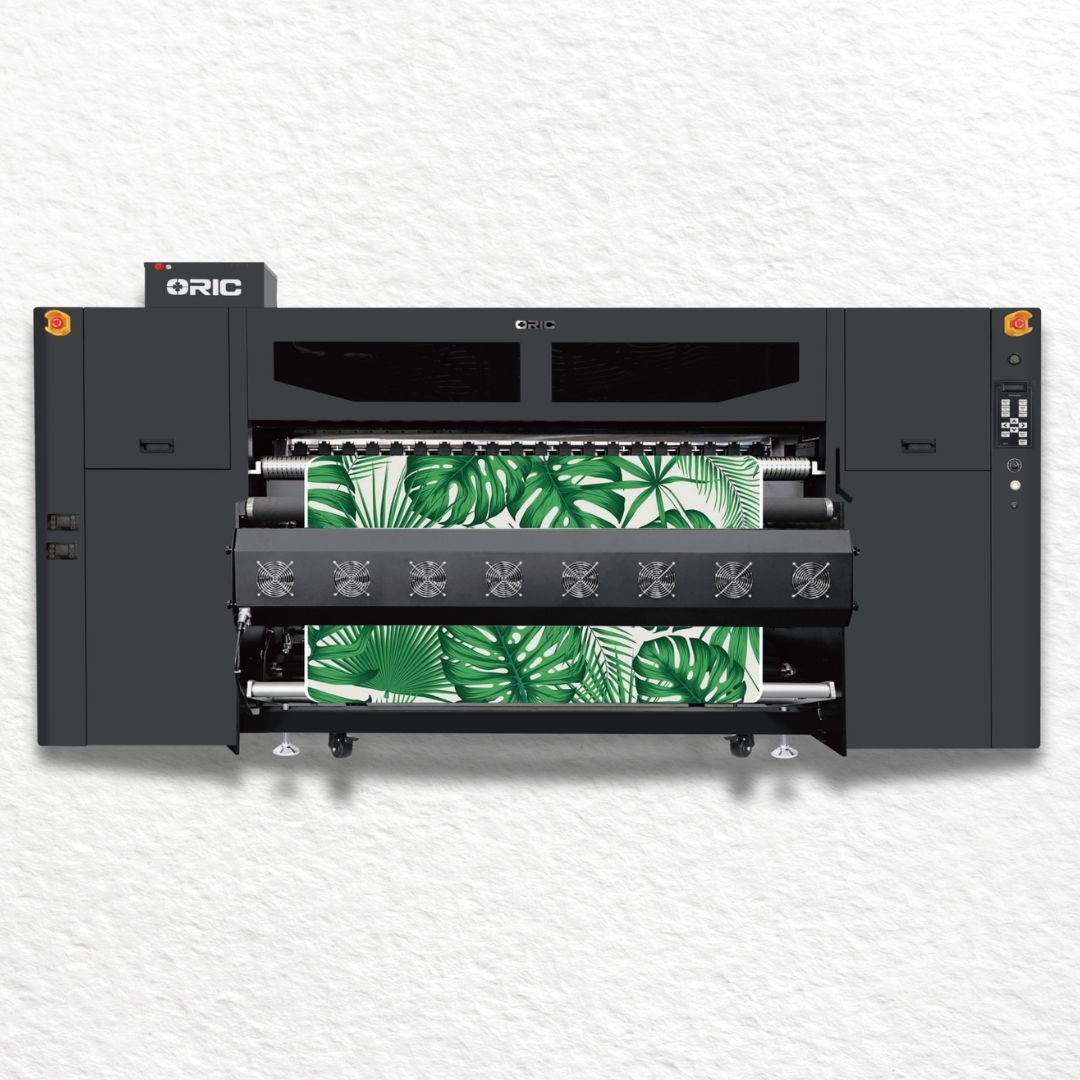

DYE SUBLIMATION PRINTER – TX08 – 1
DYE SUBLIMATION PRINTER – TX08 – 1:
Sublimation printing is a process that requires six main elements: an Inkjet Printer, Sublimation Ink, Transfer Paper, RIP Software, Heat Transfer Machine, and Fabric. With inkjet dye sublimation printing, you can print on fabrics and surfaces of various widths and lengths.
We are engaged in offering a high quality range of Digital Sublimation Paper Printing Machines for Polyester Fabric Printing. The machine is available in 60”, 72”, and 120” width for printing on sublimation paper for transfer printing to Polyester fabric.
INK:
Ink Type – Type – Dye Sublimation Ink
Capacity – 4″4 CISS (220ml ink cartridge with 5L ink tank)
Supply Mode – AC 220V + 10%, 50/60 HZ
Colors – Cyan, Magenta, Yellow and Black
Media Heating System – Integrated post heater & Infrared Dryer & Fan system.
Technical Specifications:
Model – OR18-TX8
Print Head – Eight I3200 Print heads
Printing Technology – Piezoelectric Inkjet
Acceptable Media – Width – 71.6 in.(1820mm)
Thickness – Maximum 39 mil(1 mm)
Weight – 220 lb.(100kg)
Printing Width – 70.8 in.(1800 mm)
Ink Cartridges – Type – Dye Sublimation Ink
Capacity – 4″4 CISS (220ml ink cartridge with 5L ink tank)
Color – 4 colors (Cyan, Magenta, Black, Yellow
RIP Software – Neostampa 8.9
Printing Resolution – Maximum 2400 dpi
Printing Speed – 1 pass(360x1200dpi):320 sqm/h
2 pass(360x2400dpi):180 sqm/h
3 pass(360x3600dpi):120 sqm/h
Media Heating System – Integrated post heater & Infrared Dryer & Fan system
Interface – USB 3.0
Power Supply – AC 220V + 10%, 50/60 HZ
Dimensions(with stand) – 133.86(W)x51.18(D)x74.80(H) in.
(3400(W)x1300(D)x1900(H)mm)
Weight(with stand) – 1212.54 lb. (550 kg)
Package Dimensions – 133.86(W)x55.12(D)x78.74(H) in.
(3600(W)x1400(D)x2000(H)mm)
Package Weight – 1455.05 lb. (660kg)
Environment – Power Off – Temperature: 59 ‘F to 90 ‘F [ 15’C tp 32’C ] / Humidity: 35 to 80% (no condensation).
Power Off – Temperature: 41 ‘F to 104 ‘F [ 5’C tp 40’C ] / Humidity: 20 to 80% (no condensation.
Accessories – USB Cable, Media Clamp, Manual, Drain Bottle, Ink Cartridges, RIP software etc.
