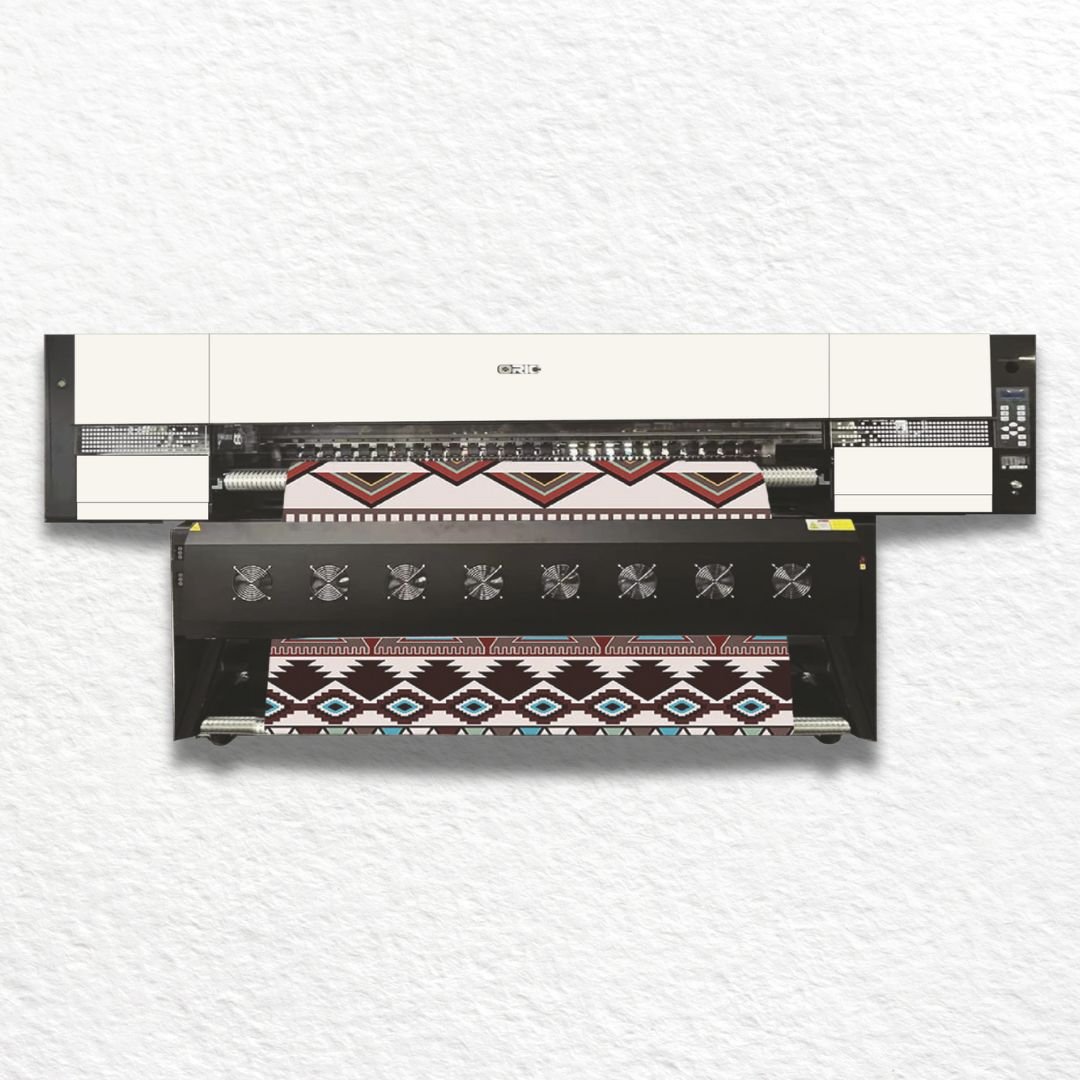

DYE SUBLIMATION PRINTER – TX12

DYE SUBLIMATION PRINTER – TX12

Sublimation printing is a process that requires six main elements: an Inkjet Printer, Sublimation INK, Transfer Paper, RIP Software, Heat Transfer Machine, and Fabric. With inkjet sublimation dye sublimation printing. You can print on fabrics and surfaces of various widths and lengths.

We are engaged in offering a high quality range of Digital Sublimation Paper Printing Machines for Polyester Fabric Printing. The machine is available in 60a”, 72”, and 120”, width for printing on sublimation paper for transfer printing to Polyester fabric.

Technical Specifications

Model – TX12

Print Head – 12*i3200 Print Heads

Droplet Size – 3.5pl

Printing Width – 78.8 in.(1900 mm)

Printing Speed – 1 pass – (720x6000dpi): (540 sqm/h)
2 pass – (720x1200dpi): (298 sqm/h)
Ink Cartridges – Dye Sublimation Ink
Syphon + Automatic Ink Replenishment
CMYK (6colors or 8colors Optional)

Print Media – Heat Transfer Paper

Print Media Control – Air Shaft Automatic Take-up

Dryer – External Automatic Air Heat Intergranted Dryer

Moisture unit – Automatic Cleaning and Moisturizing Integrated Captop

RIP Software – Neostampa 8.9

File Format Supported – JPG, TIF, PDF etc.

Computer Configuration – Operating System: win7 64 bit / win10 64 bit
Hardware Requirements: CPU: i7 processer (9th gen or   higher), Hard Disk 500g+ (solid state disk) Operating Memory 16g.
Data transmission: USB3.0

Power Requirement – Input Voltage: AC 220V + 5%, 16A, 50 HZ+1
Printer: 2500W

Drying unit power: Maximum 8kw

Dimensions(with stand) – 3670(W)x750(D)x1850(H) mm

Package Dimensions – 3860(W)x1130(D)x2150(H) mm

Package Weight – 800 kg

Working Environment – Temperature 15-32 degree C, Humidity: relative humidity: 40-70 (non condensing)

Standard Components – External Automatic Air Heat Integrated Dryer, Low Ink Alarm System, Air Shaft Media Loading and Take-up, and Automatic  Moisturizing and Cleaning Init.
