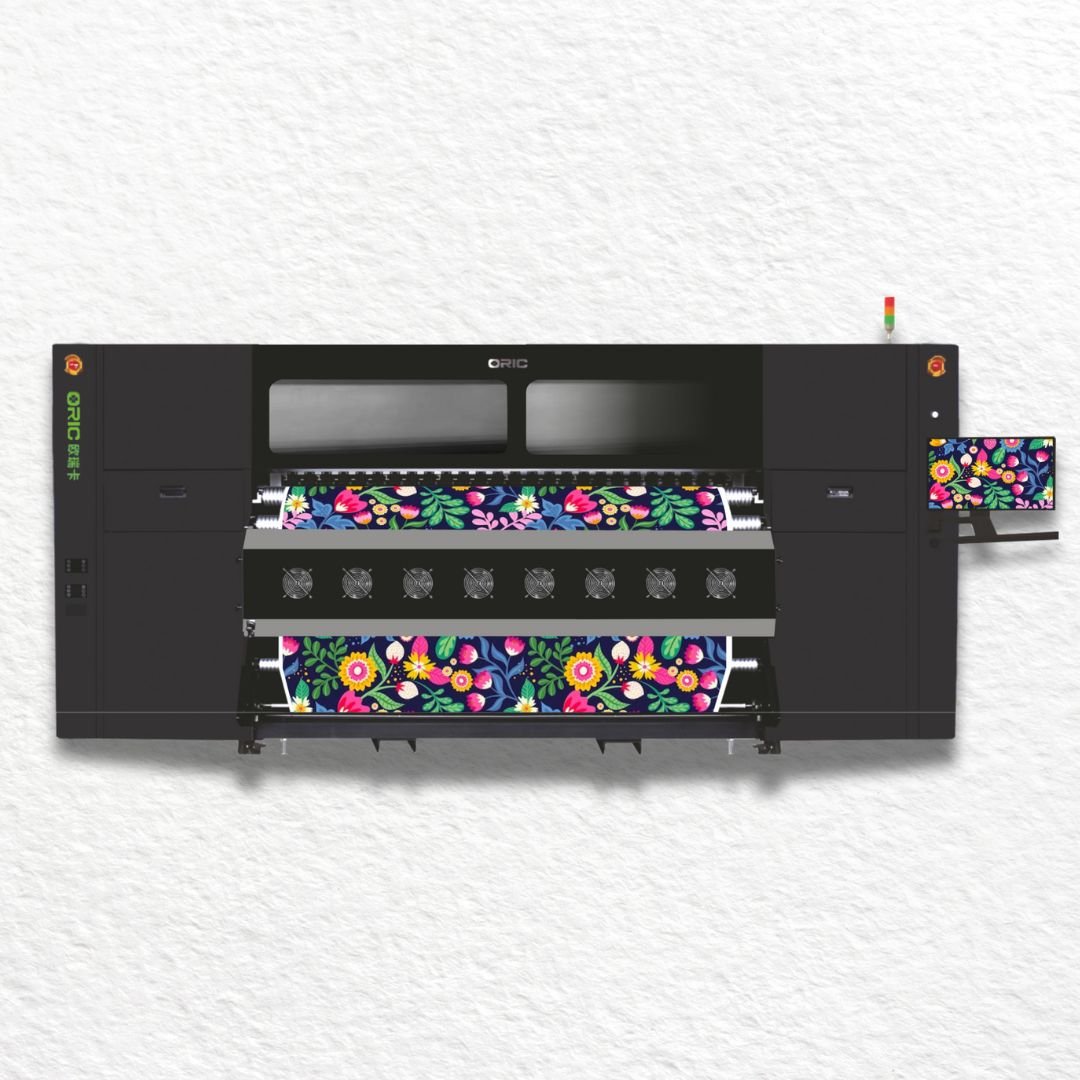

DYE SUBLIMATION PRINTER – TX16
DYE SUBLIMATION PRINTER – TX16
Sublimation printing is a process that requires six main elements: an Inkjet Printer, Sublimation INK, Transfer Paper, RIP Software, Heat Transfer Machine, and Fabric. With inkjet sublimation dye sublimation printing. You can print on fabrics and surfaces of various widths and lengths.
We are engaged in offering a high quality range of Digital Sublimation Paper Printing Machines for Polyester Fabric Printing. The machine is available in 60a”, 72”, and 120”, width for printing on sublimation paper for transfer printing to Polyester fabric.
Technical Specifications
Model – TX16
Print Head – 16*i3200 Print Heads
Droplet Size – 3.5pl
Printing Speed – 1 pass – (640 sqm/h)
2 pass – (320 sqm/h)
Ink – Kind: High-concentration heat transfer ink
Color: CMYK (4colors)
Ink supply method: Syphon ink supply
Capacity: 10L
Machine Width – 1950 mm
Print Width – 1900 mm
X-axis transmission – Belt drive
Receiving and discharge structure – Rear release / frequency conversion motor
Carryable materials – 3000 Meter
Material Specifications – > 30g
Drying Structure – External multi – stage automatic control wind and heat all-in-one dryer
Moisturizing Structure – Fully automatic cleaning and moisturizing components
RIP – Standardly equipped with Ruiyin beidoc version
Support Image – JPG, TIF, PDF
Computer Configuration – Operating System: win7 64 – bit / win10 64 – bit
Hardware Requirements: Hard disk: 500G Above (SSD is recommended), Running more than 8G memory.
Graphic card: ATI discrete graphics 4G memory; CPU: i7 processor.
Interface: LAN
Power – Input Voltage: AC 220V + 5%, 16A, 50 HZ
Printing System: 2000W
Drying System: Maximum power : 18KW
Standard assembly – External automatic control of air and heat all-in-one dryer, liquid level alarm system, double expansion shaft, automatic feeding system, automatic moisturizing cleaning system.
Working Environment – Temperature: 20’C / 32’C : Relative Humidity : 40% / 65% (non considering).
Machine Size / Weight – 3734x1232x1588 mm / 850 kg
Package Size / Weight – 3860x1130x2000 mm / 890 kg
