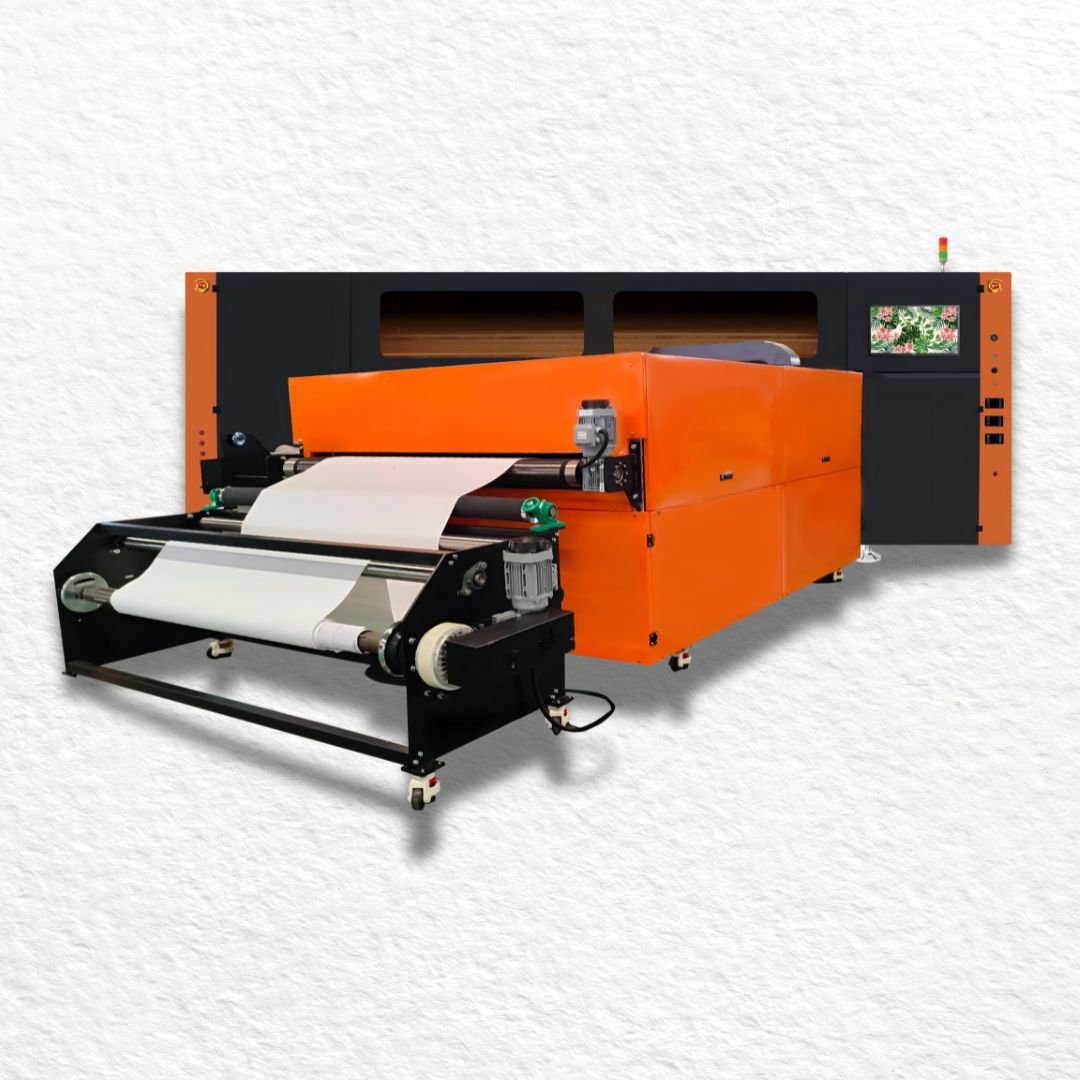

FOIL-16  PRINTER

FOIL-16  MACHINE

It adopts advanced board control technologye, equipped with 16 i3200-A1 print heads and 3.5pl ink droplets. The industrial grade design ensures the durability of the print head. The new automated production scheme, high-strength industrial design structure, can be equipped with 3000 meters of foil & paper with performance, and the unattended automated- production scheme can be fully realized, so that the productivity has further improved.

*Paper retracting system adopts industrial servo drive reducer, which has high speed, high precision and more stable paper retracting.

*High quality THK silent linear motor,  low noise, high precision, durable.

*Negative pressure ink supply unit, efficient and stable, long time printing ink.

PRINTING SPECIFICATIONS

Model    – TX-2216

Print Head   –  16*i3200-A1 Print Heads

Printing Speed  –  4pass – (100m/h) / 8pass – (50m/h)

Printing Technology  –  Piezoelectric Inkjet

Printing Width  –  2050 mm

Machine Width –  2250 mm

Ink Cartridges – kind  – High-concentration heat transfer ink

Ink supply method – Negative ink supply

Capacity – 10L

Color – CMYK (6color or 8color Option)

Print Media – Heat Transfer Foil & Paper

Ink Size – 3.5pl

Dryer – External Automatic  Air Heat Integrated Dryer

Moisturizing unit – Fully automatic cleaning and moisturizing components

Interface – LAN

RIP Software – Neostampa  / Raiprint

Support Image – JPG / TIFF / PDF

Computer Configuration – Operating System – Win7 64-bit / Win10 64-bit

Hardware Requirements – Hard disk : 500G Above (SSD is recommended); Running more than 8G memory.

Graphics Card –  ATI discrete graphics 4G memory; CPU: i7 processor.

Power – Input Voltage – AC 220 V ± 5%. 16A, 50 HZ± 1



Printing System –  7000W

Drying System – Maximum 18kw

Package Size / Weight – Machine: 4800x900x2000 mm/ 1400 kg / 10000 meters of

Machine Size / Weight – 4550x2550x1750 mm / 1800 kg

Standard assembly – Intelligent drying system, continuous ink supply system, ten thousand

Working Environment  – Temperature: 20℃~ 32℃; Relative humidity 40%~65% (No

Carryable Materials – 3000 Meter

Material Specifications – ≥ 30 g



DRYER – SPECIFICATION’S

POWER PARAMETERS



Hybrid  – 0.75KW

Circulating fan   – 2.2KW

Dehumidification fan  – 0.25KW ( Wind Gap 110*110)

Roller  – 0.75KW

Electric heating   – 2KW*12=24KW

Machine Size –  3060*2260*1775

Package Size  –  4050*2260*1775
